Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder
This wire welding machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Simply load materials manually and remove finished pieces. Ideal for welding mesh within 1000mm × 1000mm range.
Specifications
| Model | WL-TSP-100/150K |
| Input Power (V/φ) | 380/3 |
| Rated Power (KVA) | 100/150 |
| Applicable Material | Stainless Steel, Carbon steel, Aluminum, Metal |
| Electrode Force (KG) | 250-400 |
| Welding Thickness (MM) | 1-5mm |
| Warranty | 1 year |
| Mesh Welding Range | 1000mm × 1000mm |
The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.
Key Features
- Intelligent welding control system with automatic coordinate and current input
- Core components: PLC, Engine, Motor for reliable operation
- Wire frame bending capability for square shape wire frames
- Dual power options: Three-phase MF DC or two-phase AC supply
- Automatic wire filling system for continuous operation
- Customizable dimensions to match specific product requirements
- 1200mm effective welding width for large mesh products

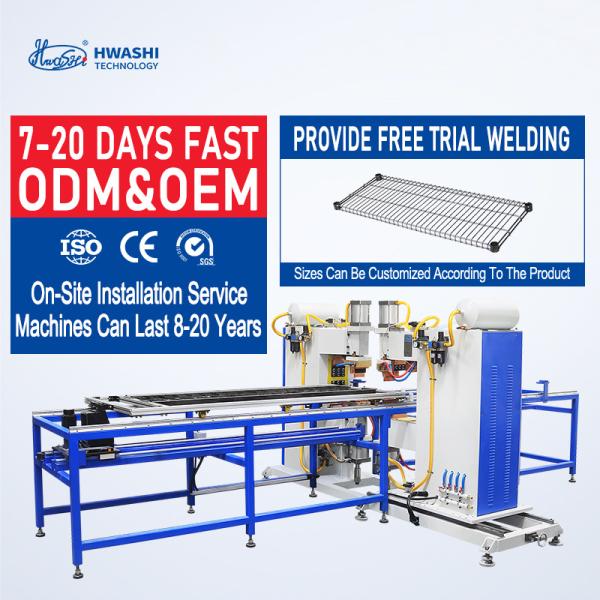

- Automatic double-layer feeder for improved productivity
Technical Parameters
| Product Name | Wire Mesh Welding Machine |
| Welding Power Source | Three-phase MF DC or two-phase AC power supply |
| High Speed Wire Processing | 5× normal speed for 2mm to 4mm wires |
| 2D Wire Handle Bending | 2-6mm wire bending capability |
| Welding Heads and Fixtures | Custom designed per product drawings |
| Wire Frame Double T-Butt Machine | Dual-head cross bar welding design |
Applications
Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.
Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
